Model Die & Mold custom designs and builds medium-to-large compression molds, plastic injection molds, carbon fiber molds, and die cast dies. Our molds make parts like the sink or shower you used this morning, the grill on the vehicle you drive, or even the carbon fiber parts used on Boeing's 787 Dreamliner.

Family-owned for over 50 years, our clients rely on us to prevent pitfalls and solve challenges in their molding processes.

From concept to reality.

Exactly.

Equipment List

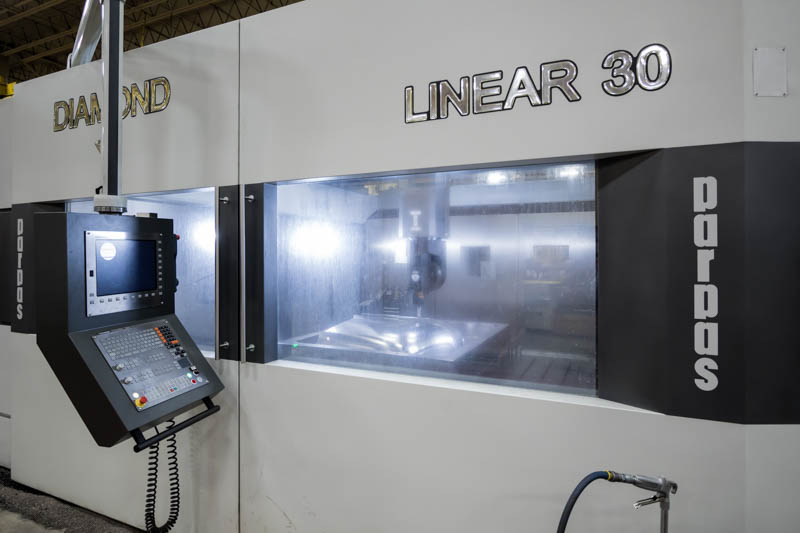

Parpas Diamond 30 Linear 5-axis CNC Machining CenterOver our entire 50-year history, Model Die & Mold has been a technology leader. We have the latest in high-performance equipment to produce durable, quality molds and dies. Take a look below at the overview or click on the links for more details about our impressive machine capabilities.

Click here to download our latest equipment list

CNC MACHINING

27 CNC Machining Centers and Mills

Milling Equipment Details

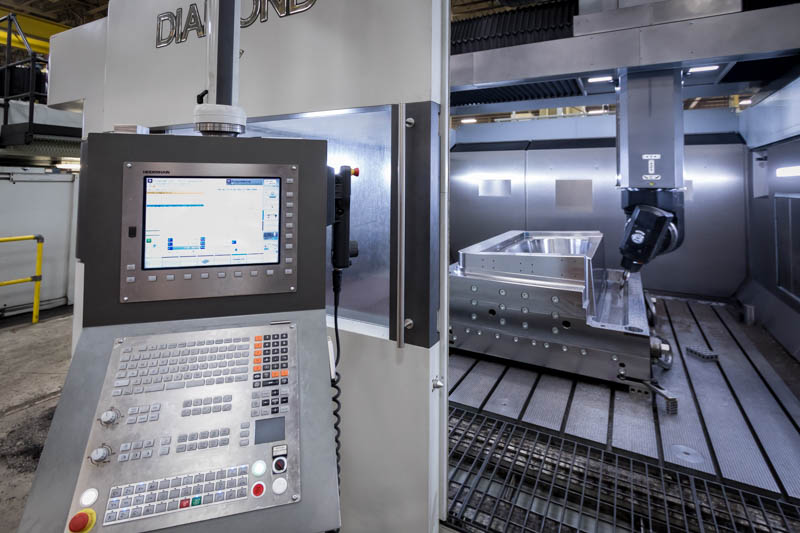

Parpas Diamond 30 LInear 5-axis CNC Machining CenterParpas Diamond 30 Linear 5 Axis Gantry High Speed Mill
Travels 118" x 98.5" x 47.25"
Table 118" x 102"
CNC 5-AXIS Heidenhain TNC i640
LinMax Linear 5 Axis Gantry High Speed Mill
Travels 98.4" x 86.6" x 39.4"
Table 98.4" x 86.6"
CNC 5-AXIS Heidenhain ITNC 530
Parpas Diamond Linear 5 Axis Gantry High Speed Mill
Travels 87" x 59" x 39"
Table 91 x 63
CNC 5-AXIS Heidenhain ITNC 530
Parpas Diamond 5 Axis Gantry High Speed Mill
Travels 87" x 59" x 39"
Table 91" x 63"
CNC 5-AXIS Selca
Tarus HSQHTB810 CNC Bridge Mill
Travels 120" x 100" x 44"
Table 72 x 136
CNC 5-AXIS FIDIA C10
Deckel Maho DMC60T
Travels 30.7" x 22" x 22"
Table 24.8" x 19.7"
CNC 3-AXISHeidenhain MIllPlus IT
NEW
OKK VM7 III Vertical Machining Center
Travels 60" x 29" x 26"
Table 61 x 29
CNC 3-AXIS Neomatic 730
OKK VP600 Trunion Vertical Machining Center
Travels 44" x 24" x 18"
Table 51" x 24"
CNC 5-AXIS Fanuc Series 310is
Creative Evolution HS-1300 Vertical Machining Center
Travels 59" x 27.5" x 23"
Table 59" x 27.5"
CNC 3-AXIS Creative Evolution
Creative Evolution HS-1300 Vertical Machining Center
Travels 59" x 27.5" x 23"
Table 59" x 27.5"
CNC 3-AXIS Creative Evolution
Creative Evolution HS-1300 Vertical Machining Center
Travels 59" x 27.5" x 23"
Table 59" x 27.5"
CNC 3-AXIS Creative Evolution
Creative Evolution HS-500 Vertical Machining Center
Travels 20" x 16" x 16"
Table 20" x 20"
CNC 3-AXIS Creative Evolution
Creative Evolution HS-500 Vertical Machining Center
Travels 20" x 16" x 16"
Table 20" x 20"
CNC 3-AXIS Creative Evolution
Creative Evolution HS-850 Vertical Machining Center
Travels 33" x 20" x 21"
Table 18" x 37"
CNC 3-AXIS Creative Evolution
Sogotec BD3223 CNC Bridge Mill
Travels 126" x 63" x 31.5"
Table 79" x 118"
CNC 3-AXIS Fanuc
Awea SP3016 CNC Bridge Mill
Travels 120" x 63" x 30"
Table 59" x 120"
CNC 3-AXIS Fanuc
Morton VTC-4080 CNC Vertical Milling Machine
Travels 80" x 40" x 32"
Table 39" x 118"
CNC 3-AXIS Heidenhain TNC155
Cincinnati CNC Horizontal Boring Mill
Travels 168" x 51.5" x 25"
Table 68" x 168"
CNC 3-AXIS Heidenhain
Kearney Trecker Moduline CNC Machining Center
Travels 71" x 47" x 30"
Table 40" x 74"
CNC 3-AXIS Heidenhain TNC155
Okamoto VMC800 CNC Vertical Milling Machine
Travels 32" x 20" x 20"
Table 22" x 53"
CNC 3-AXIS Heidenhain TNC155
Okamoto VMC800 CNC Vertical Milling Machine
Travels 32" x 20" x 20"
Table 22" x 53"
CNC 3-AXIS Heidenhain TNC155
FPT Pragma M CNC Horizontal Mill
Travels 157" x 78.5" x 47"
Table 157" x 98"
CNC 5-AXIS FIDIA C10
Anayak HVN-H-5000 CNC Horizontal Milling Machine
Travels 169" x 106" x 47"
Table 193" x 44"
CNC 3-AXIS Heidenhain ITNC 530
Anayak HVN-H-3300 CNC Horizontal Milling Machine
Travels 104" x 78" x 47"
Table 130" x 47"
CNC 3-AXIS Heidenhain ITNC 530
Anayak HVN-H-3300 CNC Horizontal Milling Machine
Travels 104" x 78" x 47"
Table 130" x 47"
CNC 3-AXIS Heidenhain 426
Anayak HVN-H-3300 CNC Horizontal Milling Machine
Travels 104" x 78" x 47"
Table 130" x 47"
CNC 3+2-Axis Heidenhain 426
Anayak HVN-H-3300 CNC Horizontal Milling Machine
Travels 104" x 78" x 47"
Table 130" x 47"
CNC 3+2-Axis Heidenhain 426
Read More

GUN DRILLING MACHINES

 (Deep Hole Drilling Machines)

3 Gun Drills with STS BTA Capabilities

Gun Drilling Equipment Details

Tarus CNC 6-Axis Gun Drill with aux spindle
Travels 120" x 61" x 32"
Table 120" x 120"
6-axis
NEW
Tarus CNC Gun Drill with aux spindle
Travels 130" x 60" x 96"
Table 84" x 120" 80,000 lb load capacity
4-axis
CNC Tarus MBX-92
Tarus CNC Gun Drill with aux spindle
Travels 130" x 60" x 96"
Table 60" x 108" 60,000 lb load capacity
4-axis
CNC Tarus MBX-92

EDM (Electrical Discharge Machines)

5 Large Capacity EDM Machines.

EDM Equipment Details

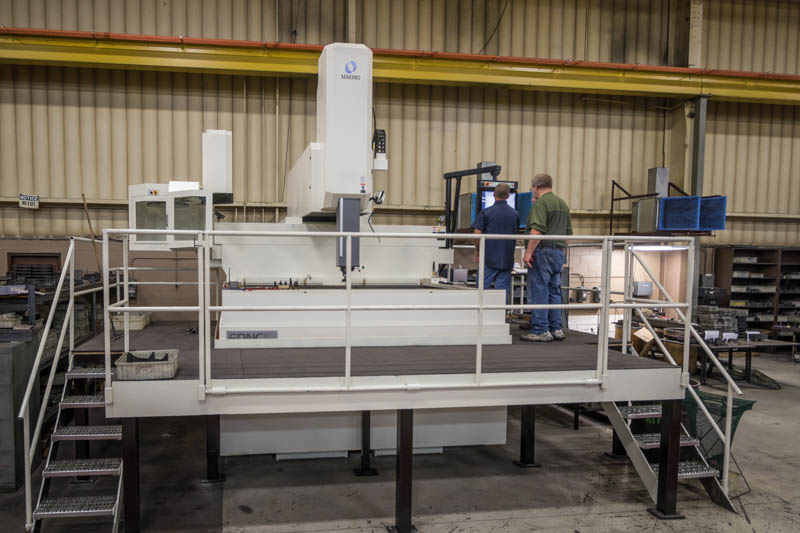

Makino EDNC Ram EDMMakino EDMC15 60 Amp - C Axis, Tool Changer
Travels 66.9" x 45.27" x 31.5"
Tank  98.43" x 63"
Hyper i





EDM Solutions Polaris, 300 Amp
Travels 24" x 18" x 15"
Tank 60" x 44"
CNC Heidenhain 406
EDM Solutions Titan, 150 Amp - C Axis
Travels 52" x 27" x 18"
Tank 100" x 59"
CNC Heidenhain 406
EDM Solutions Titan, 150 Amp - C Axis
Travels 52" x 27" x 18"
Tank 117" x 60.5"
CNC Heidenhain 406
EDM Solutions Titan, 150 Amp
Travels 52" x 27" x 18"
Tank 80" x 49.5"
CNC Heidenhain 406

Grinders

4 Grinders to 50" x 22" Capacity.

Grinding Equipment Details

Okamoto FSG-125 Surface Grinder
Travels 50" x 22" x 23"
Table 47" x 19.5"
Kent 2412 Surface Grinder
Travels 24" x 12" x 13"
Table 23.5" x 12"
Kent 4016 Surface Grinder
Travels 40" x 16" x 18"
Table 39" x 16"
Norton 2408 Surface Grinder
Travels 24" x 8" x 12"
Table 24" x 8"

Molding and Spotting/Hot-Fitting Presses

3 Presses to 144" x 96" x 88" Capacity.

Spotting & Molding Equipment Details

Spotting and Hot Fitting Presses

Millutensil Tilt Out Spotting Press, 165 Ton
Capacity 80" x 60" x 67"
Table 80" x 60"
ABE Seiki Tilt Out Spotting Press, 200 Ton
Capacity 98" x 78" x 86"
Table 98" x 78"
HPT Hydraulic Press, 2500 Ton
Capacity 144" x 96" x 88"
Table 144" x 96"




Molding Press and Equipment

HPT Compression Molding Press, 2500 Ton
Capacity 144" x 96" x 88"
Table 144" x 96"
Cleaver Brooks 40 HPBoiler
(2) TVC Water Heaters
(2) DME Hot Runner Controllers 8 & 12 Zone
(2) Advantage Oil Heaters
New
SMC Material Roll Handlers /Stripper/Cutter/Scale
New

Miscellaneous Equipment

  • Marvel Band Saw
  • Powermatic Band Saw
  • Miller Welder
  • Lincoln Welder
  • 18" x 40" Lathe
  • 16" x 40" Lathe
  • Bridgeport Mills, Series 1 and 2

Material Handling/Trucking

  • Kenworth Quad-Axle 80,000 lb Flatbed
  • GM 2500 Diesel Pickup with 5th Wheel Hitch
  • Ford F-250 Pickup
  • 30' Flatbed Trailer with 16,000 lb payload
  • Elwell Parker 50-Ton Die Mover, 110,000 lb
  • Allis Chalmers Lift Truck, 12,000 lb
  • Hyster Forklift, 5,000 lb
  • Komatsu Lift Truck, 5,000 lb
  • (2) Overhead Crane, 40-Ton Bridge, 2 Hooks, 35-20 Ton, 100,000 lbs
  • (1) Overhead Crane, 20-Ton
  • (3) Overhead Crane, 15-Ton
  • (14) Overhead Crane, 5-Ton

Engineering Software

  • (8) NX Mach 3 Mold Design - Siemens NX 11.0.0.33
  • (1) CADFIX
  • (1) Lemoine Engineering

Manufacturing Software

  • (8) Powermill Pro
  • (2) Powermill ADV
  • (1) Delcam Exchange
  • (6) Actify SpinFire Ultimate
  • (4) NX Gateway - Siemens NX
  • (2) Lemoine 2D
  • (1) Lemoine Translator - UG-Lemoine
  • Supported Native CAD File Formats:
    STEP   •   IGES   •   Parasolid   •   JT
  • Supported platforms through third party software:
    Siemens NX7-NX12, STEP 214, STEP 203, Parasolid, IGES
